Hot Water Generators
Solid Fuel
Brijmech has been designing, manufacturing and supplying Hot Water Generators efficiently over a decade now for thousands of satisfied customers. Brijmech delivers a complete line of Solid fuel fired Hot Water Generators according to client’s requirements.

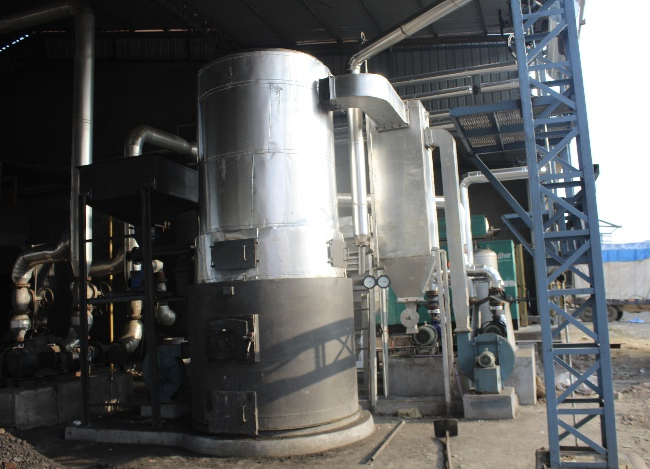

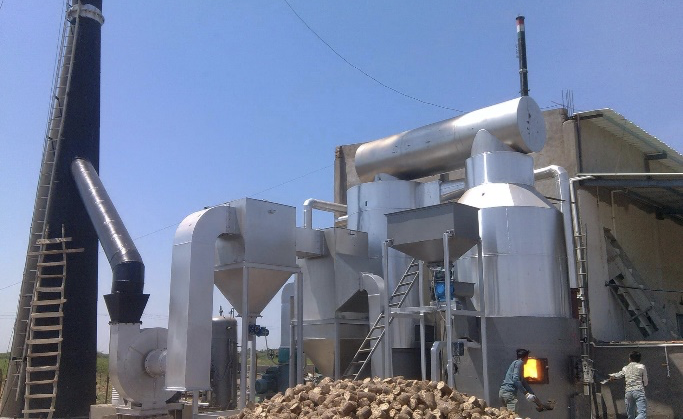

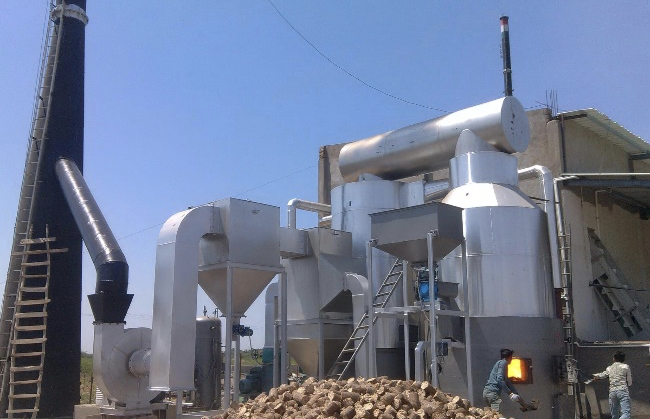

Brijmech Hot Water Generator generates hot water at a temperature as high as 160°C within a few minutes of cold start. The technology innovation lies in the use of water in its liquid phase to transfer heat to the process.
Capacity:
- Vertical Three Pass: 2 lakh K cal / hr to 25 lakh K cal / hr.
- Vertical Four Pass: 4 lakh K cal / hr to 80 lakh K cal / hr.
Key Features:
- Design as per ASME, Div – 1, Sec – VIII & DIN 4754.
- Multiple fuel options like Briquettes, Agrowaste, Wood, Imported Coal, Indian Coal, Rice Husk, Mustard Husk, Baggase, Palm Fiber, Pellets etc.
- Multi pass construction with high combustion volume.
- Optimized heat transfer area and high efficiency up to 84% for various fuels.
- Standard operating temperatures up to 170oC.
- Various fuel combustion options like Fluidised Bed, Bubbling Bed, Reciprocating grate, pulsating grate, travelling grate etc.
